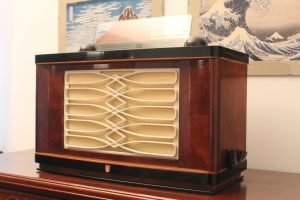

Country:                                         France

Manufacturer / Brand:              Philips

Year:                                                1949/1950

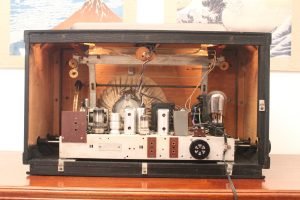

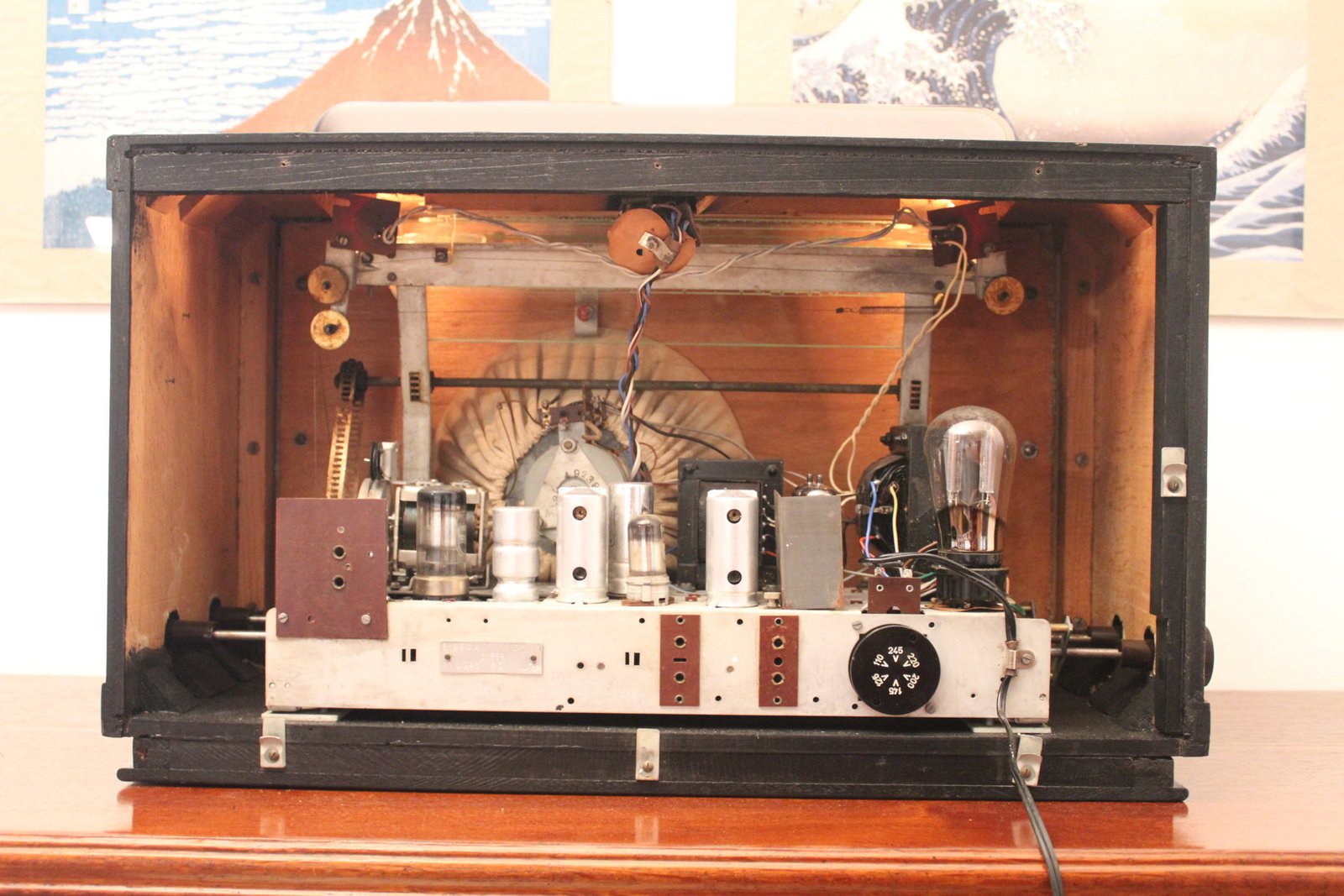

Valves / Tubes                               7: ECH21, EAF42, EAF42, EL41, EL41, AZ1, EM4.

Main principle                              Super-Heterodyne (Super in general); ZF/IF 452 kHz; 2 AF stage(s)

Tuned circuits                               6 AM circuit(s)

Wave bands                                    Broadcast, Long Wave and 6 x Short Wave.

Power type and voltage             Alternating Current supply (AC) / 115-245 Volt

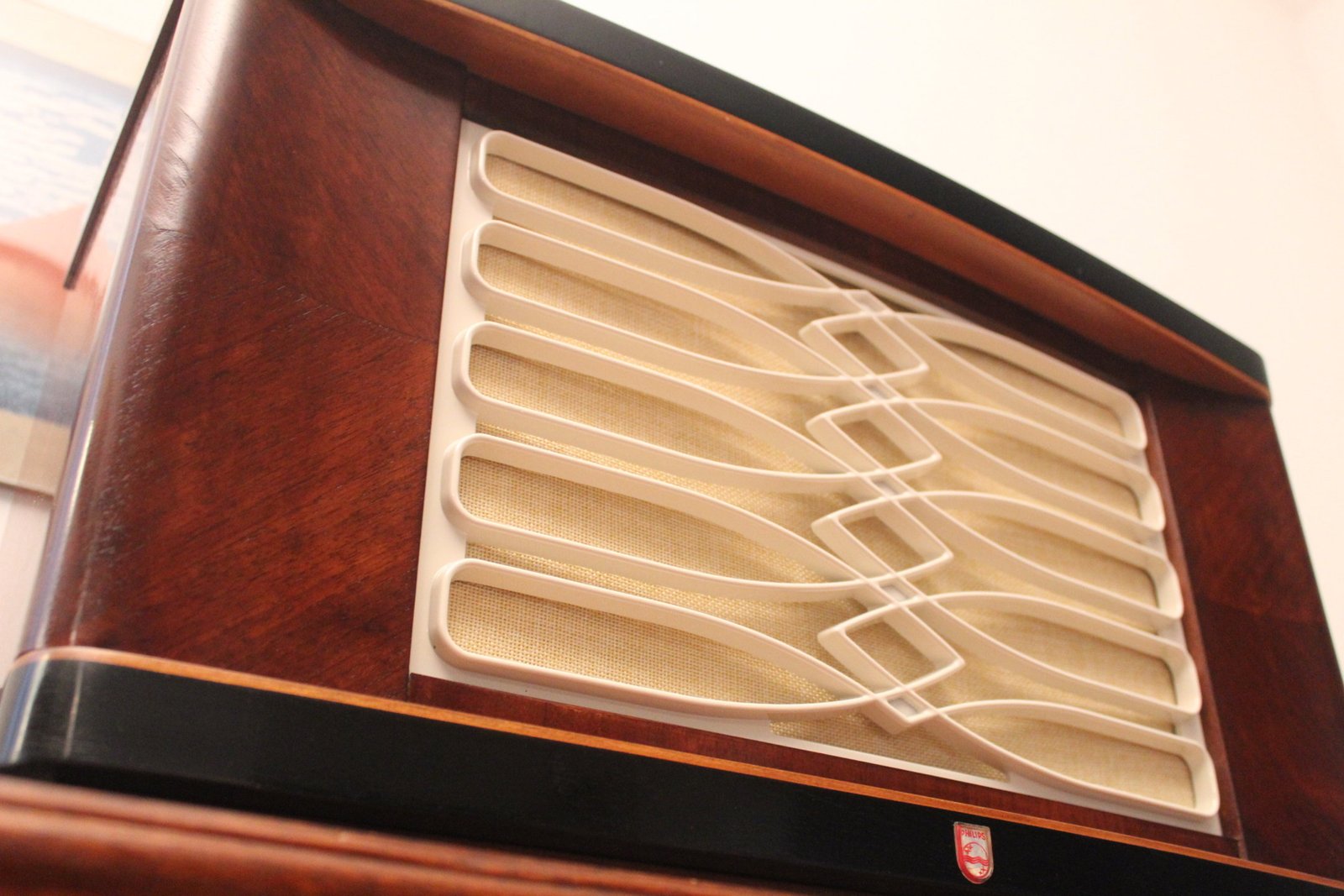

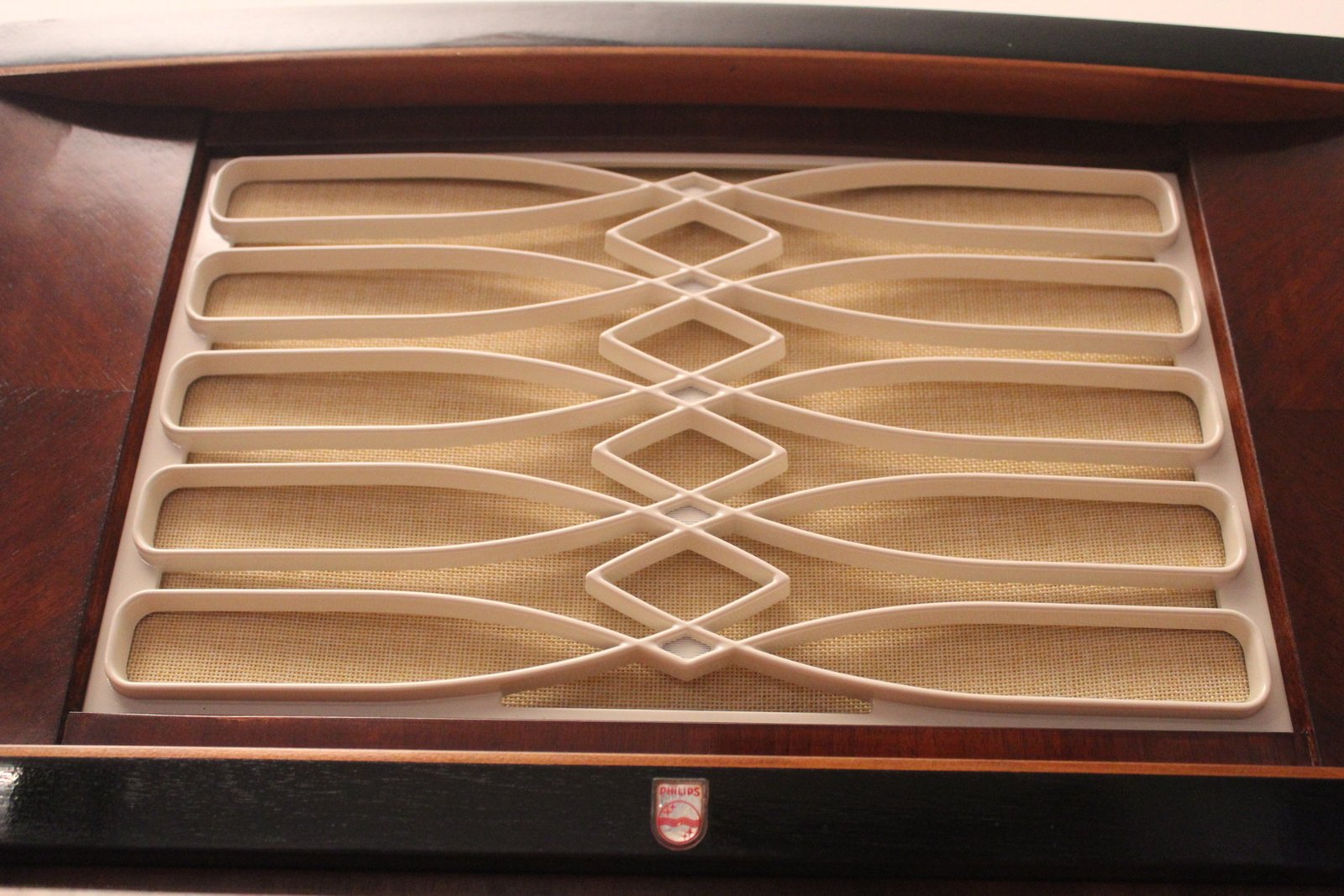

Loudspeaker                                  Elettrodynamic

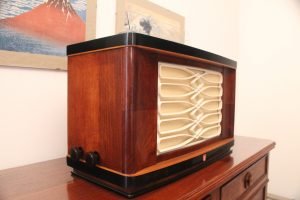

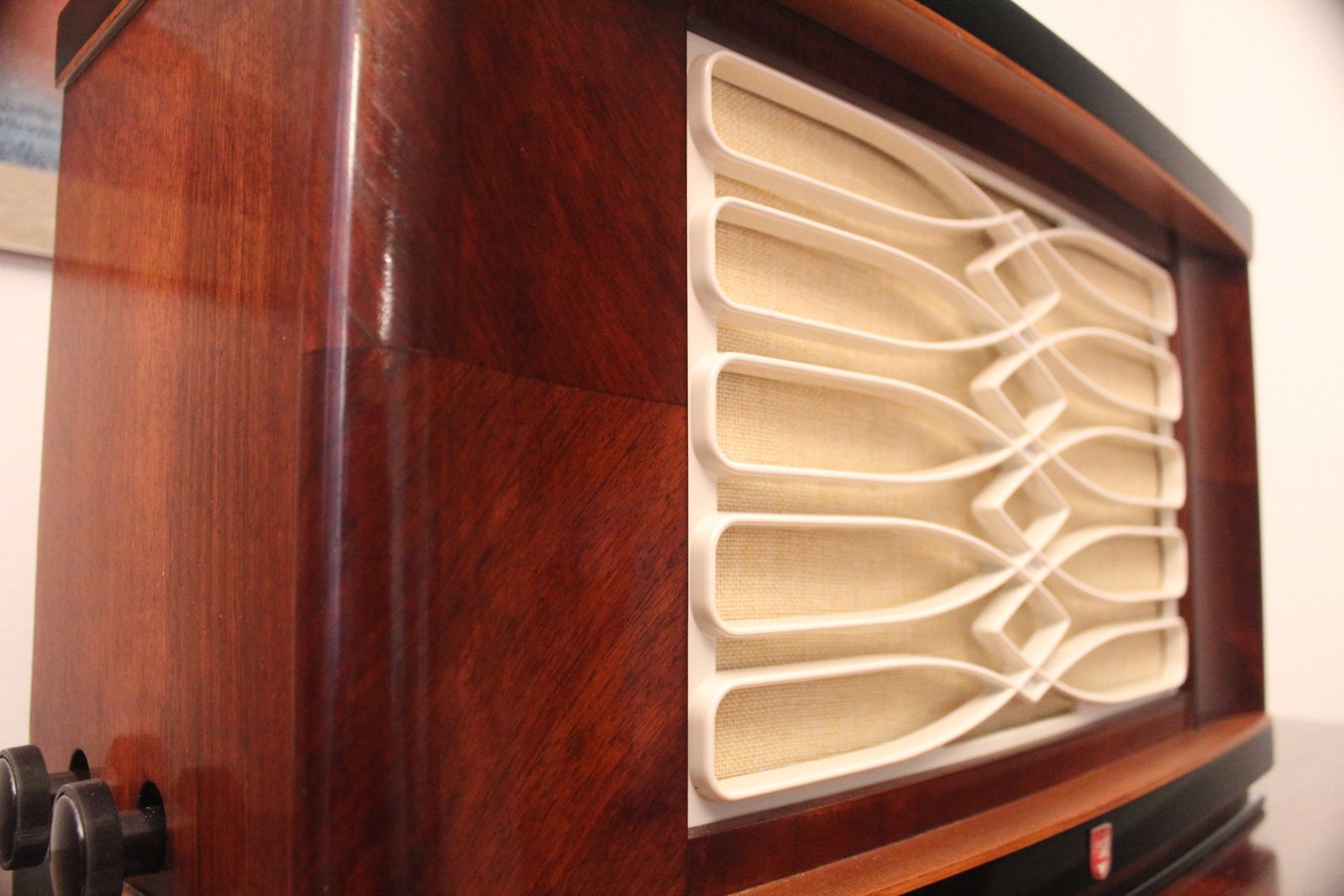

Material                                          Wooden case

Shape                                                Tablemodel, Mantel/Midget/Compact

Dimensions (WHD)                     630 x 395 x 255 mm / 24.8 x 15.6 x 10 inch

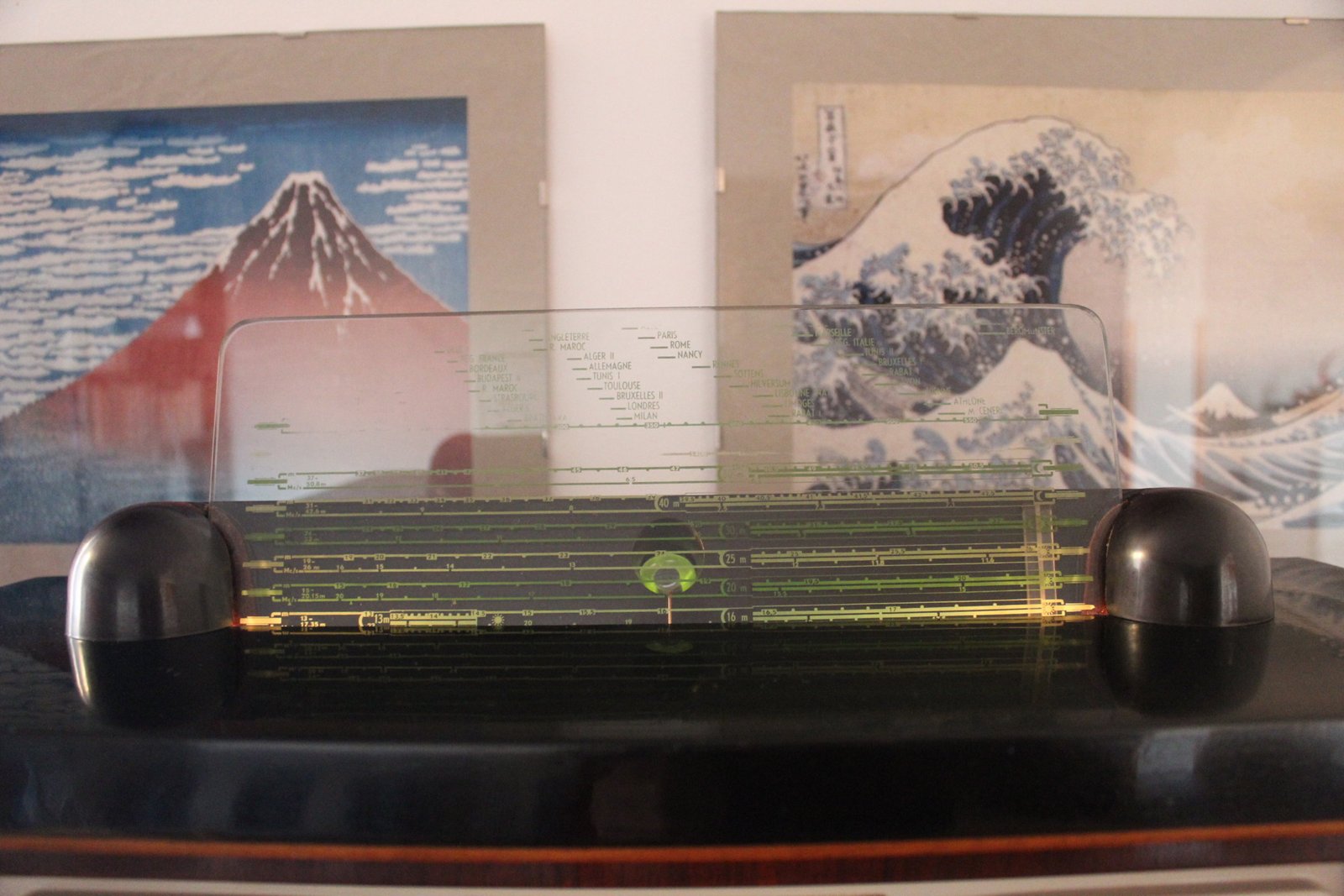

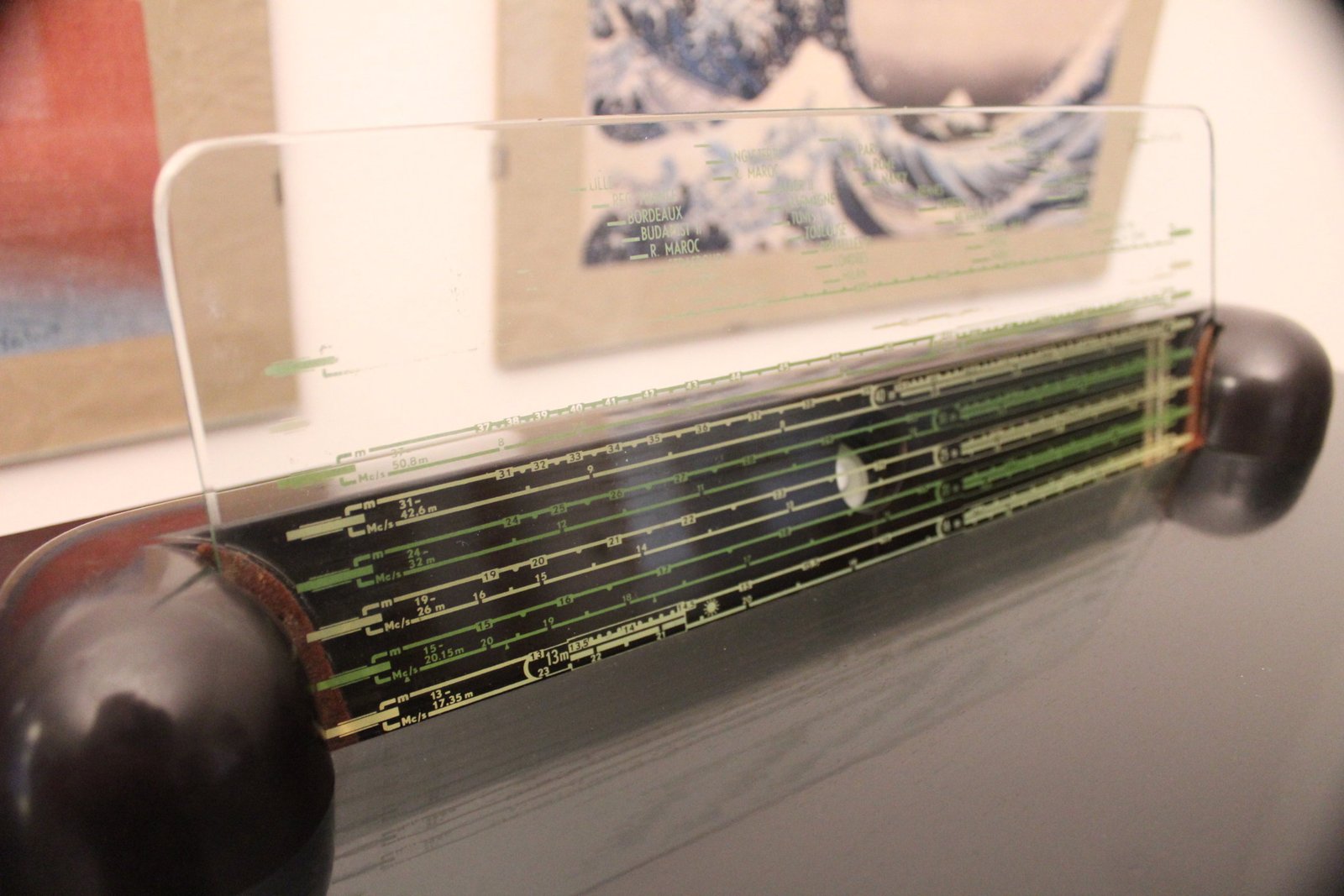

Notes                                                 AM radio for external antenna:

• LW: 150 – 420 kHz.
• BC: 420 – 1620 kHz.
• SW1: 8,1 – 5,9 MHz (37m – 50m with bandspread 49-50m).
• SW2: 9,67 – 7,06 MHz (31m – 42,5m with bandspread 40-42m).
• SW3: 12,5 – 9,43 MHz (24m – 31,8m with bandspread 30-31m).
• SW4: 15,8 – 11,6 MHz (19m – 25,8m with bandspread 25m).
• SW5: 19,3 – 15 MHz (15,5m – 20m with bandspread 19-20m).
• SW6: 23,08 – 17,65 MHz (13m – 17m with bandspread 15-16m).

Weight (2.2 lb = 1 kg)                       14.5 kg / 31 lb 15 oz (31.938 lb)
