Country:                                         Germany

Manufacturer:                              Tonfunk GmbH; Karlsruhe

Year:                                               1955/1956

Valves / Tubes                               6: ECC85 ECH81 EF89 EABC80 EM80 EL84

Main principle                             Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s)

Tuned circuits                               6 AM circuit(s) 9 FM circuit(s)

Wave bands                                    Broadcast, Long Wave plus FM

Power type and voltage             Alternating Current supply (AC) / 110; 125; 220 Volt

Loudspeaker                                 3 Loudspeakers

Material                                          Wooden case

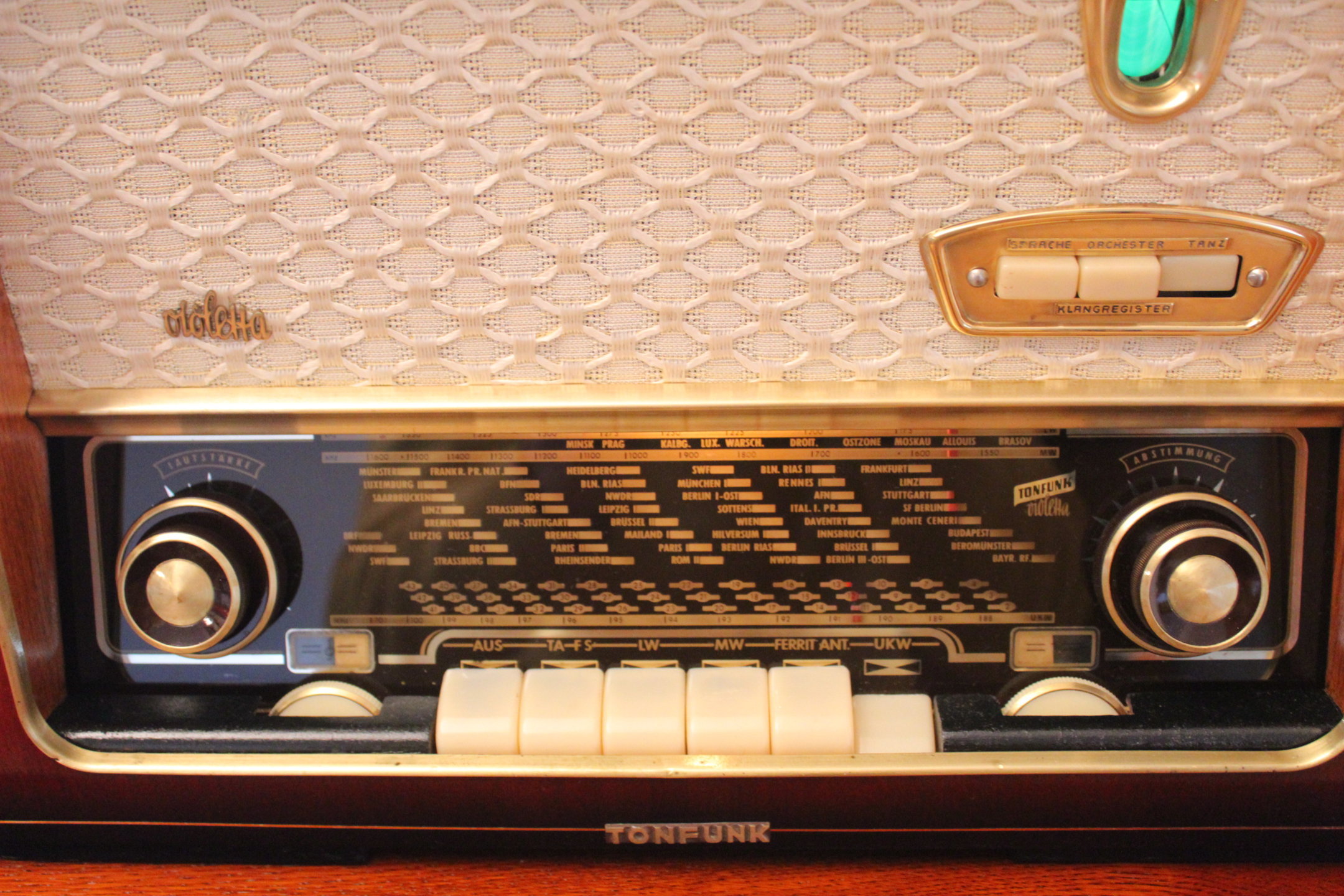

Shape                                                Tablemodel with Push Buttons

Dimensions (WHD)                    450 x 290 x 220 mm / 17.7 x 11.4 x 8.7 inch

Notes:

Weight (2.2 lb = 1 kg)                  6.5 kg / 14 lb 5.1 oz (14.317 lb)

Price in first year of sale:         269.00 DM
